Steaming Bottle Label Shrink Machine for food bottles, with a speed of up to 100bottles/min and 98% drying efficiency.
Steaming Bottle Label Shrink Machine
Technical Specifications of Bottle Label Shrink Machine
| Brand: |
PINCHI |
| Specifications: |
200x200 |
| Color: |
Stainless Steel Metallic Finish |
| Surface Finish: |
Brushed |
| Air-Drying Tunnel Dimensions: |
1600(L)x200(W)x200(H)mm |
| Conveyor Dimensions: |
2000mm(L) |
| Machine Dimensions: |
2000(L)x800(W)x1000(H)mm |
| Conveyor Speed: |
Adjustable, 0-20 m/min |
| Power Supply: |
380V 50-60Hz |
| Total Power: |
7.5KW |
| Platform Height: |
750mm |
| Conveyor Belt: |
PU Food-Grade Lower Belt, Synchronous PU Upper Pressure Belt (L) |
| Conveyor Load Capacity: |
10KG |
| Machine Weight: |
100KG |
| Primary Materials: |
304 Stainless Steel |
Advanced Performance Features of Bottle Label Shrink Machine
Conveyor Motor: Variable Frequency Drive Motor
Bottle Clamping Belt Motor: Variable Frequency Drive Motor
Air-Drying System: Spider-Bead Hand Mouthpiece + Air Knife
Air-Drying Efficiency: 100 bottles per minute
Air-Drying Effectiveness: 99.9% droplet-free residue
Leak Prevention System: Mid-body leak-proof design with centralized condensate drainage
Air-Drying Motor: Super Permanent Magnet 7.5KW (Delivers 3x higher airflow than comparable high-voltage motors)

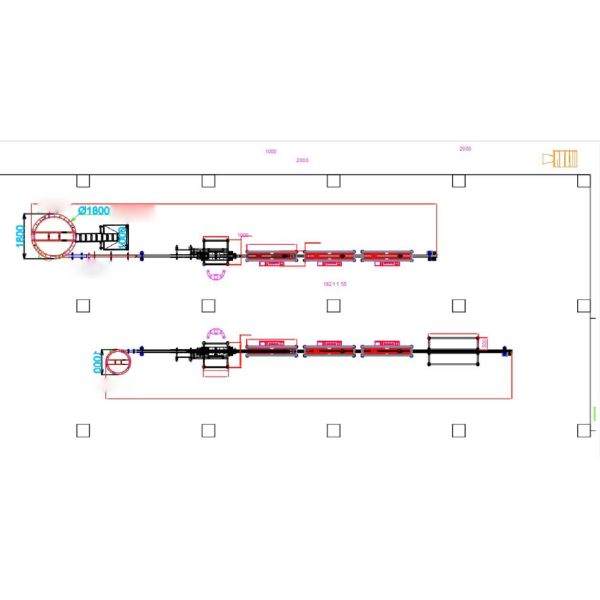

Product Drawings of Bottle Label Shrink Machine
Parts Diagram of Bottle Label Shrink Machine
Ordering & Payment Information of Bottle Label Shrink Machine
| Product Description |
Steaming Bottle Label Shrink Machine for food bottles, with a speed of up to 100bottles/min and 98% drying efficiency. |
| Place of Origin |
Made in China |
| Price Validation |
100 days |
| Payment Terms |
T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time |
35 days after receipt of advanced payment |
| Warranty |
1 year for complete machine, long term for software & system |
| Commissioning |
Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
After-Sales Service & Support of Bottle Label Shrink Machine
Quality Assurance: Complete product quality traceability with 1-year warranty period from equipment acceptance date.
- Warranty Coverage: Free maintenance during warranty period with travel and material costs charged for services beyond warranty
- Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform
- Software Updates: Comprehensive support for system updates, algorithm settings, and software adjustments
Note: All specifications and terms are subject to change without prior notice. Please contact our sales team for the most current information.
